Brick Stack Grapple - KM 331 M - KINSHOFER

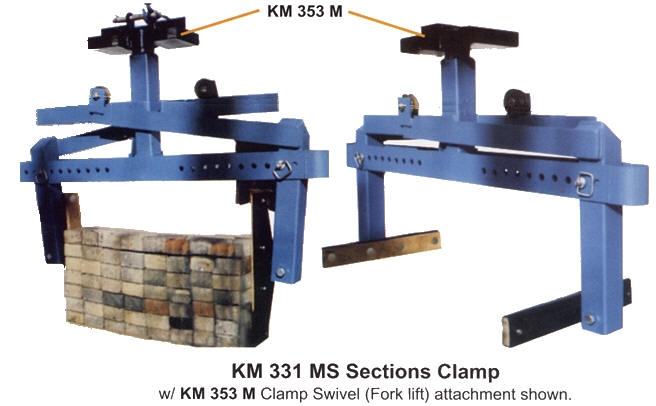

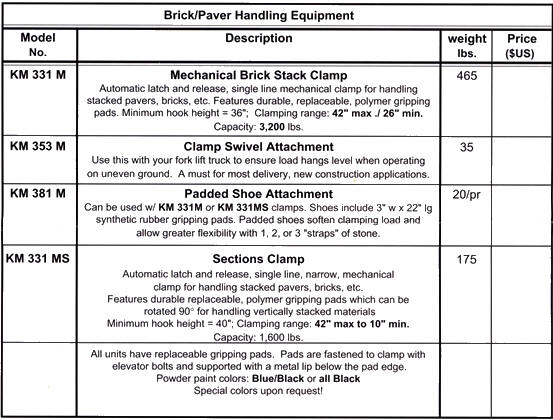

This automatic, single-line
grapple is an economical way to handle pavers, bricks and/or
blocks without pallets. The KM 331M opens to 42", closes to
26", with 21" plunge depth. Raising and lowering the clamp
cycles the two-step ratchet mechanism in one step. An
optional 21" long movable padded shoe (KM 381M) allows the
clamp to handle 1,2, or 3 "straps" of stone. A clamp swivel
(KM 353M) increases versatility & convenience when used with
a fork lift truck. |
|
|
|
|
